SPECIFICATIONS
Brand Name: BinHex
Feature 1: Tonybot Hiwonder Arduino
Feature 10: Start Kit
Feature 11: For Arduino DIY Project
Feature 12: Metal Mecanum Wheel
Feature 13: Intelligent Bus Steering Gear
Feature 14: Educational Artificial Intelligence
Feature 15: Programmable Python
Feature 16: For Scratch
Feature 2: Educational Programming Kit
Feature 3: Walking Dancing
Feature 4: Mindustrial Robotic Model
Feature 5: Programmable Development
Feature 6: DIY KIT
Feature 7: Gymnastics
Feature 8: For Arduino

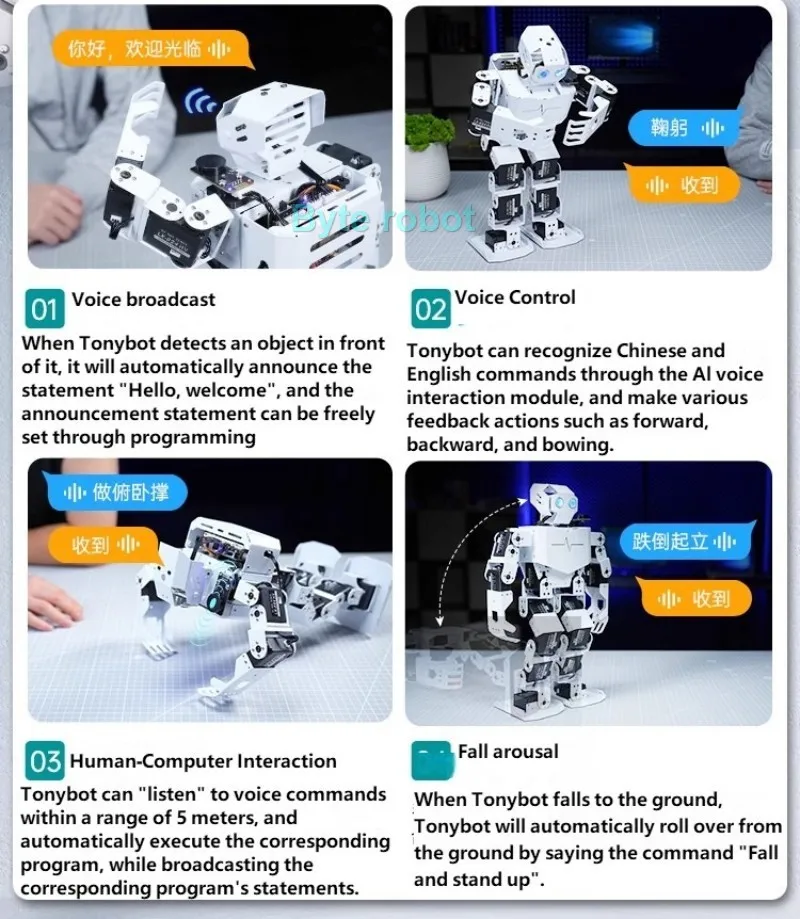

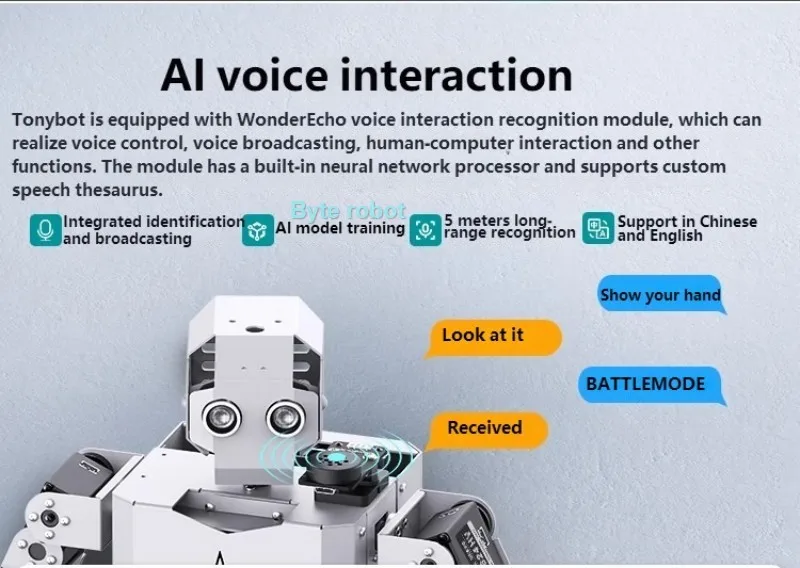

Feature 9: Voice Recognition
High-concerned chemical: None
Is Electric: Lithium battery
Model Number: Robot,17 Dof Humanoid Bionic Robot
Origin: Mainland China
Power Source: Electric
Recommend Age: 14+y
Theme: Animals & Nature,Transportation,Fantasy & Sci-Fi,Sports,Occupations,Music
Warning: Can not get water
Byte Technology Store is smarter, tech, and healthier
Welcome to Byte Technology Store, we are a leader in the toy industry, focusing on technology, technology, education and teaching development, robots, robot eyes, robot hands, robot arms, smart cars, hovercraft, claws, industrial products and other programmable intelligent products not only provide learning opportunities for children and engineers, but also stimulate their interest in education. We will soon launch more new technology, education and health products, suitable for children's play and adult learning, if you buy our programming products, we will also give relevant technical documents to help you learn and better use the product.
By the way, if you like our store, Please add our store to your Favorite Stores, You can get our New arrival and Discount information in time.
【 Read carefully before buying 】

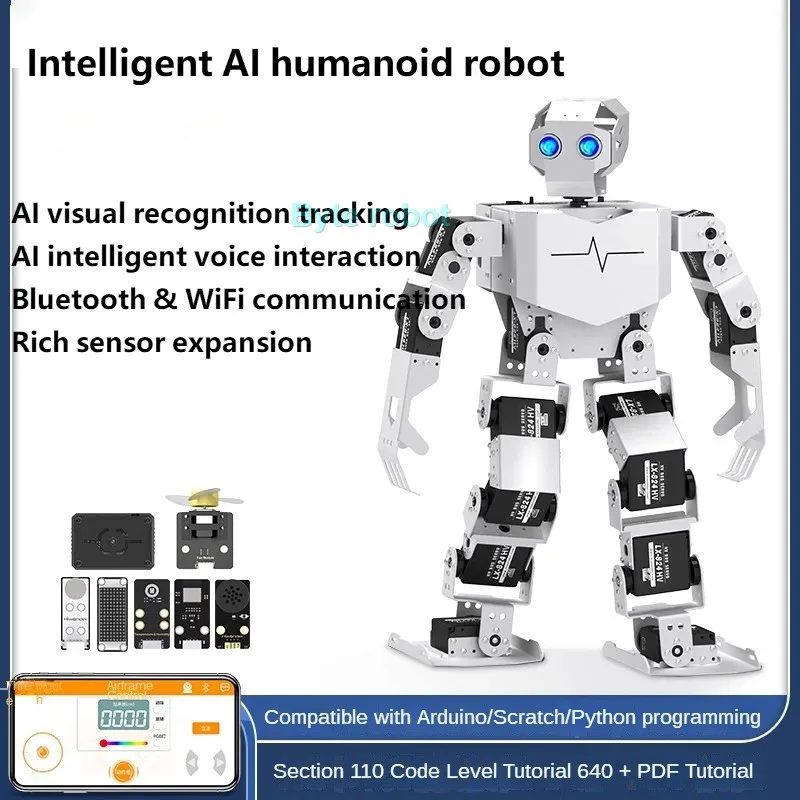

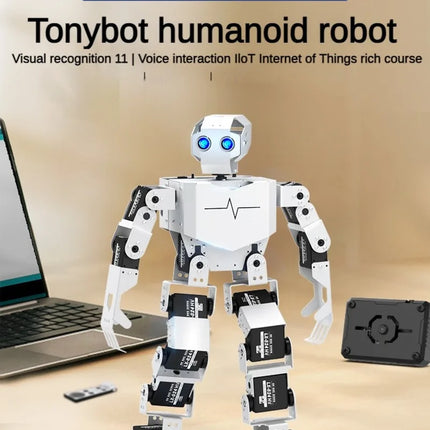

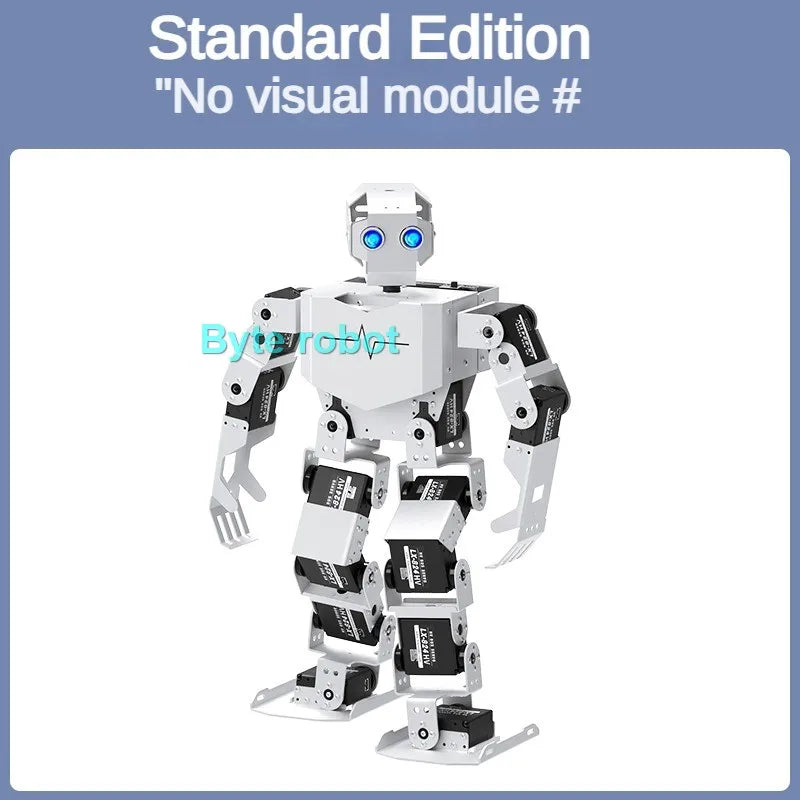

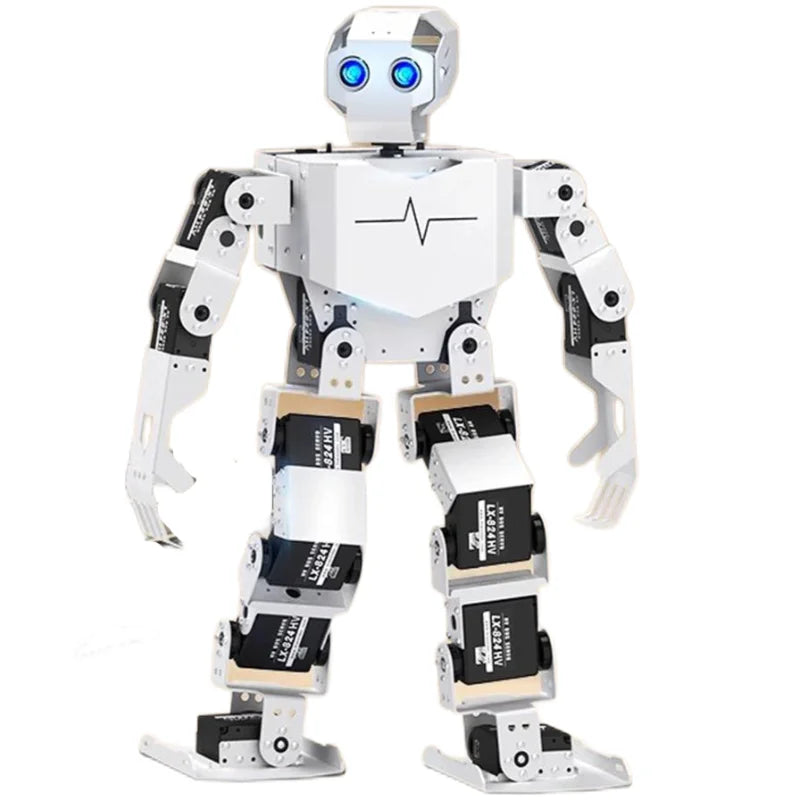

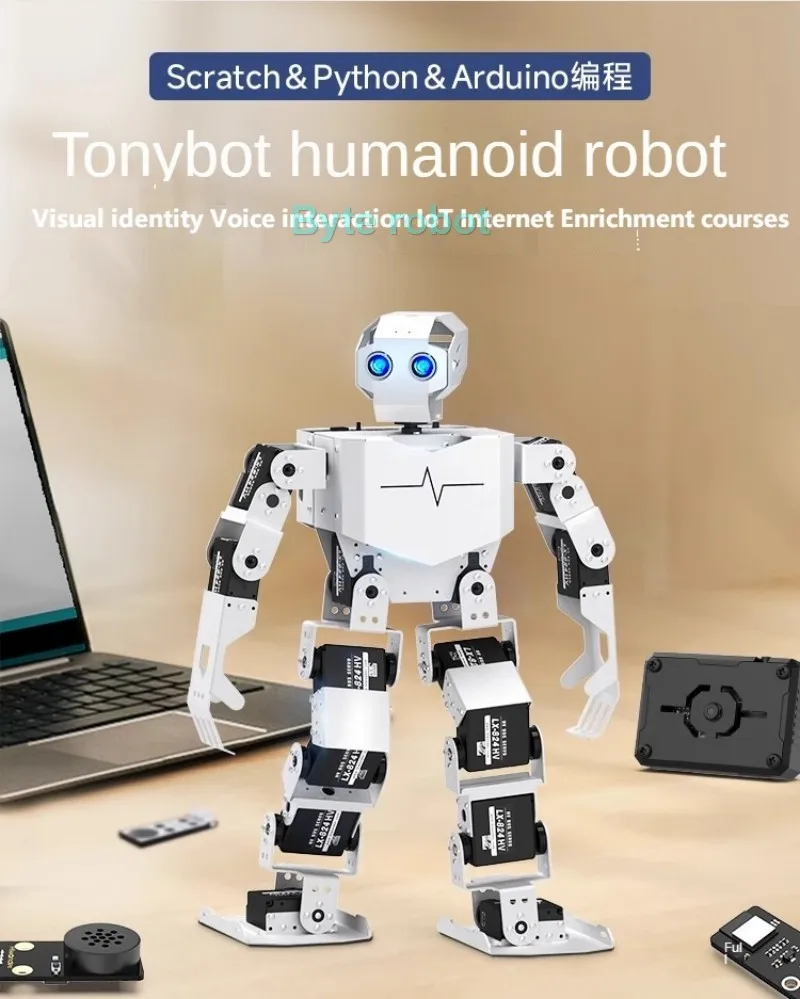

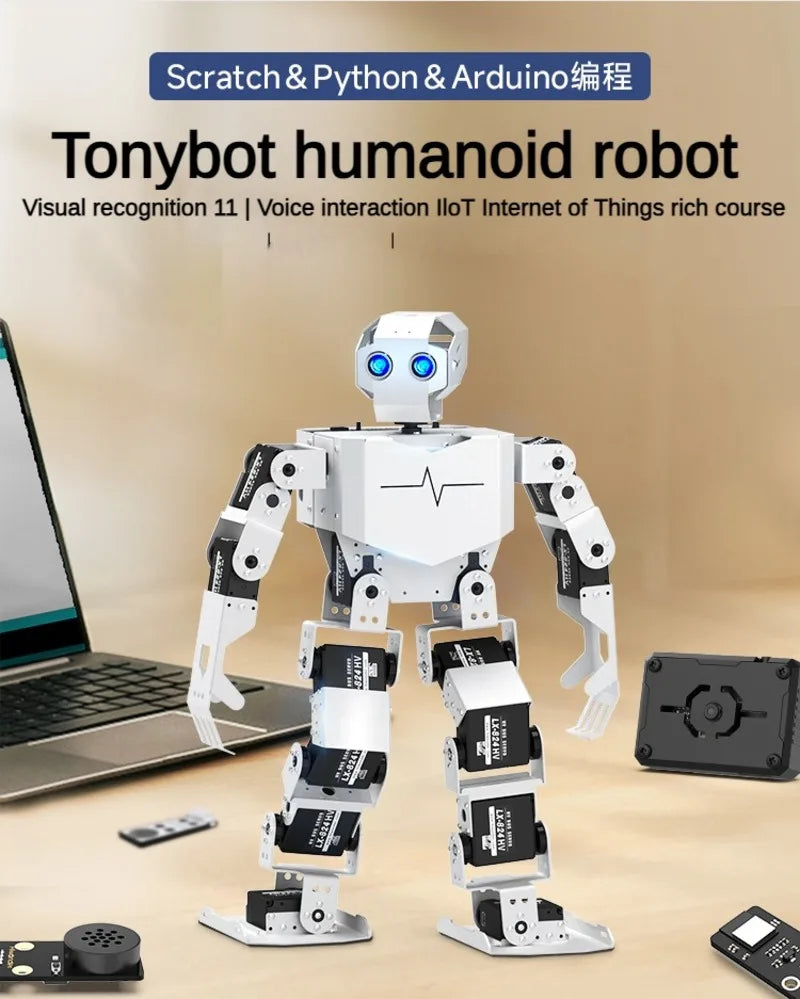

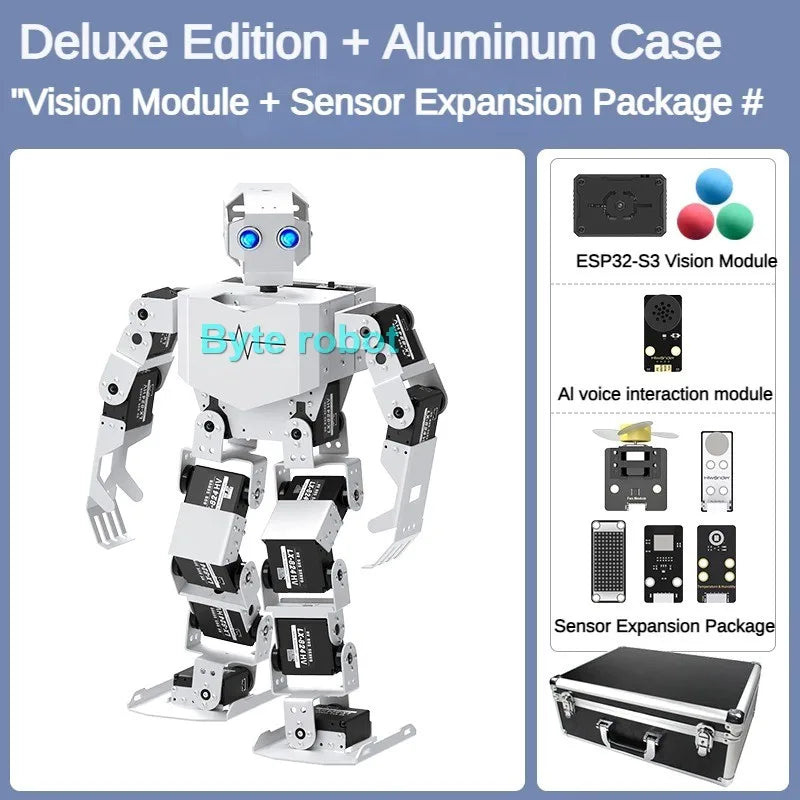

Tonybot is a programmable humanoid robot based on the Arduino platform. Its body is equipped with 16 high voltage bus servos and built-in more than 10 action groups, which can complete Walking, Dancing, Exercise and other actions.

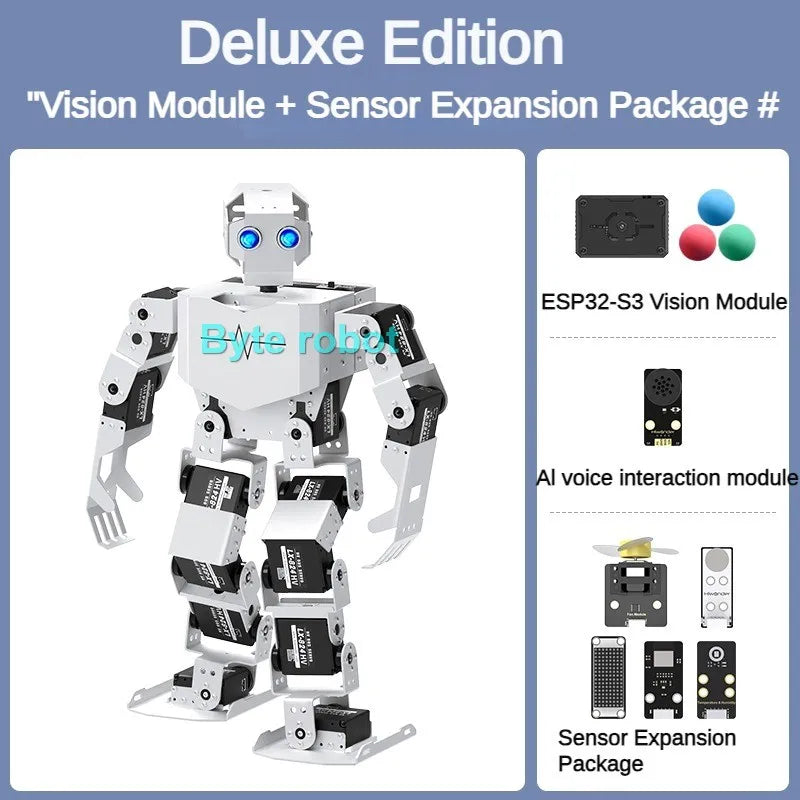

Tonybot is equipped with a sensor expansion kit so that you can carry out the secondary development through Arduino programming. The detailed tutorials and open source materials we provide can help you to better realize your great ideas!
Feature:

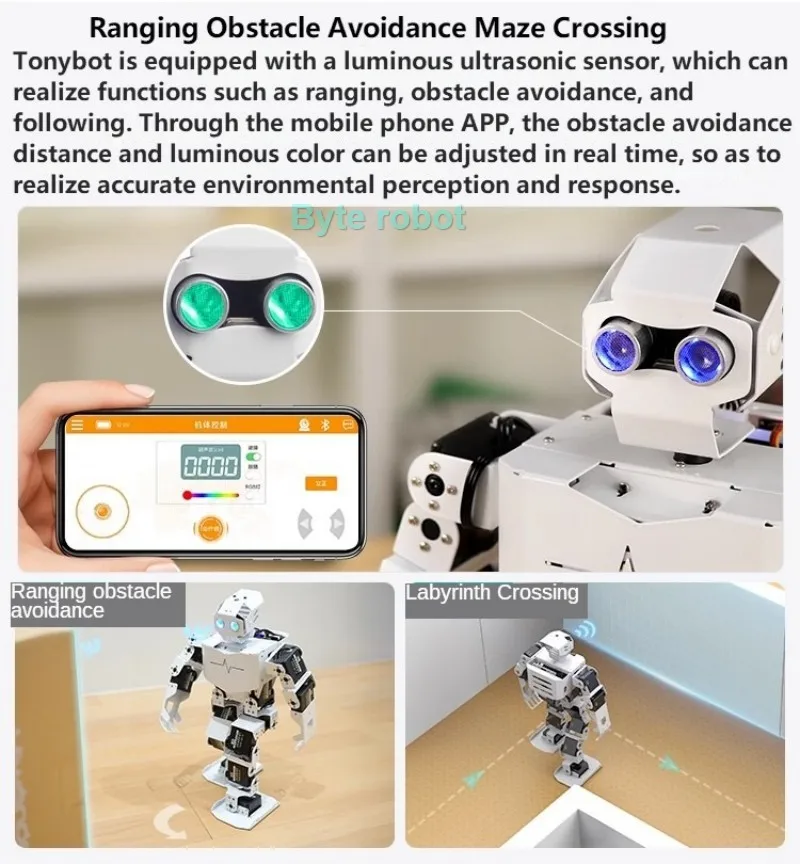

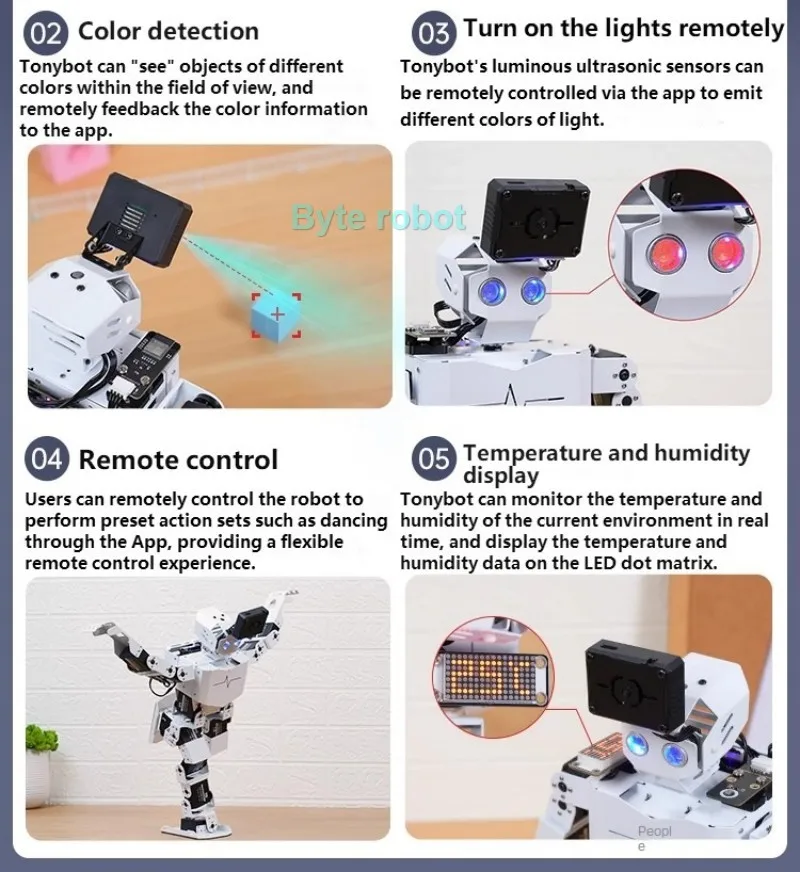

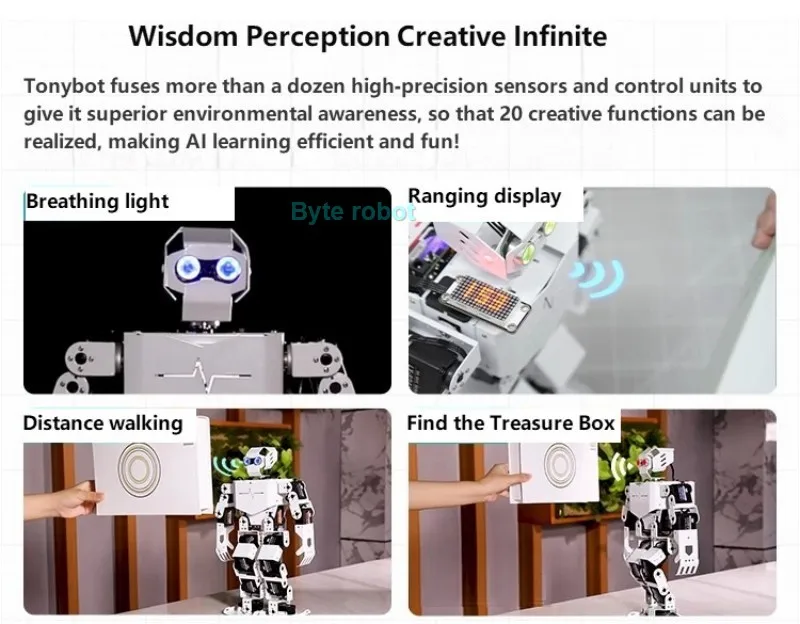

New luminous ultrasonic sensor not only can measure distance, but it has built-in RGB light. High precision and tiny blind area.

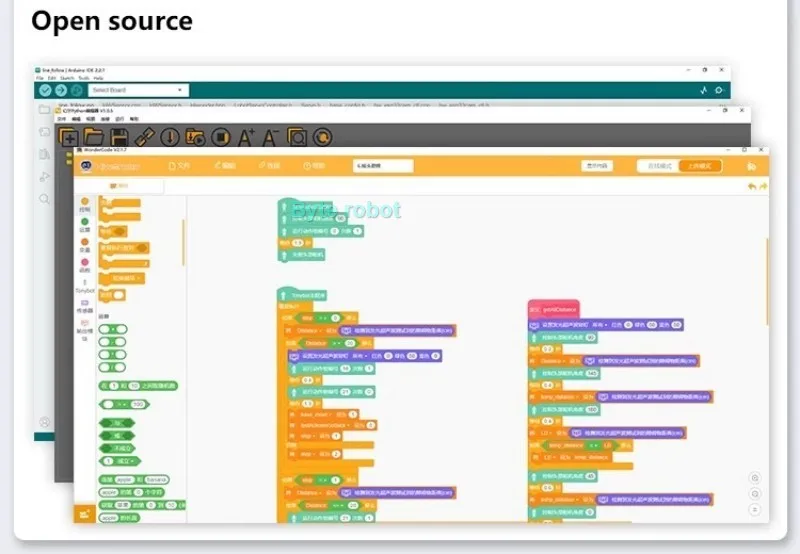

Provide open source of Arduino, code of games and detailed annotations of the code.
11.1V high-voltage servo can reduce the current by more than 60%, which significantly improves the endurance of robots.
2020 new version PC Software , easy and impressed.
Servo special plug in design to prevent from wrong direction.
Compatible with Hiwonder sensors.
Tonybot Humanoid Robot Specifications
1. Physical Parameters
Specification：
Dimensions： 383(H)×190(W)×105(D) mm
Weight: 1.8kg (robot only) / 5.3kg (packaged)
Material: Hardened aluminum alloy with reinforced structure
Shipping Size: 455×325×170mm
2. Motion System (DOF Configuration)
Head: 1-DOF
Shoulders: 2-DOF (each)
Arms: 2-DOF (each)
Legs: 4-DOF (each)
Feet: 1-DOF (each)

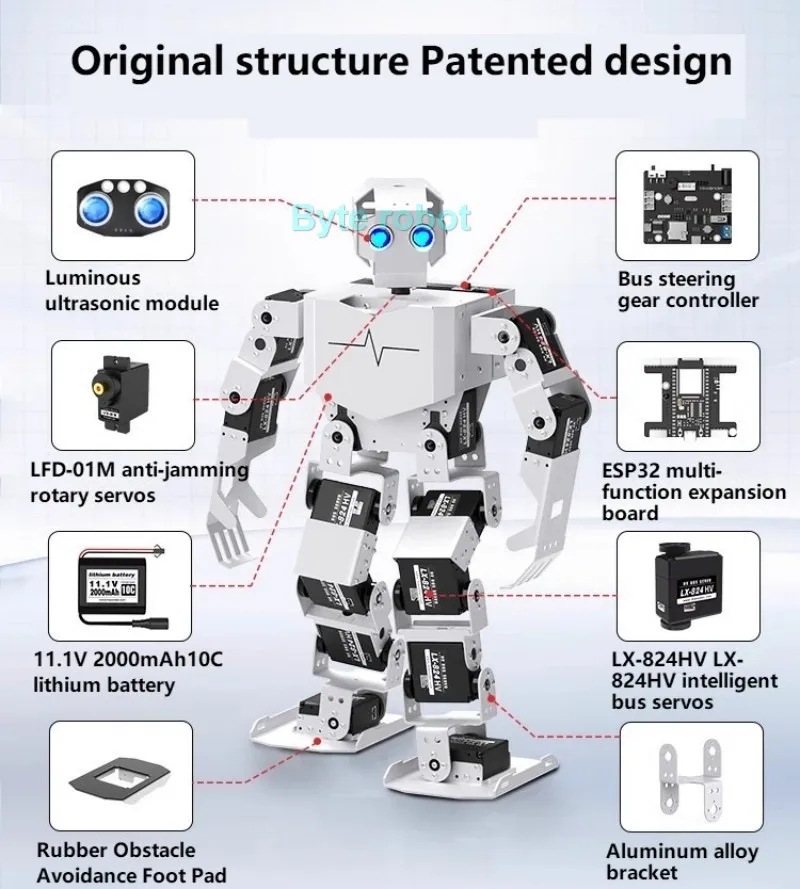

3. Hardware Configuration

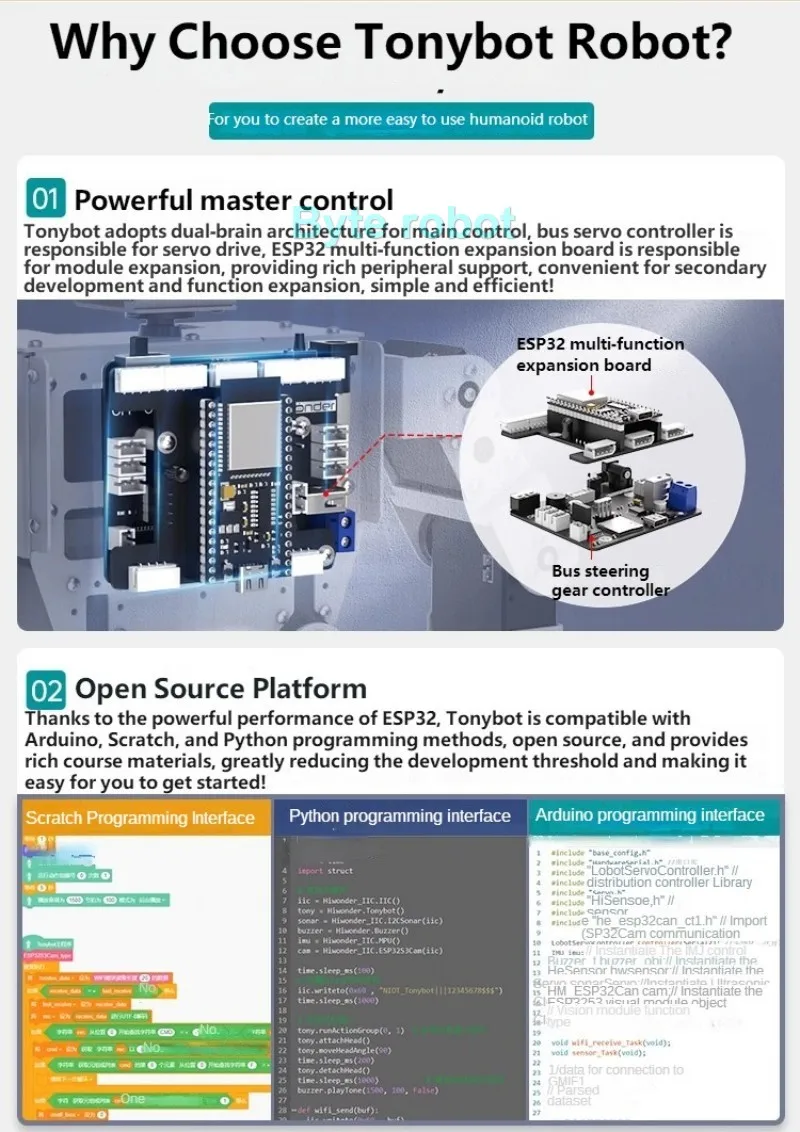

Control System:

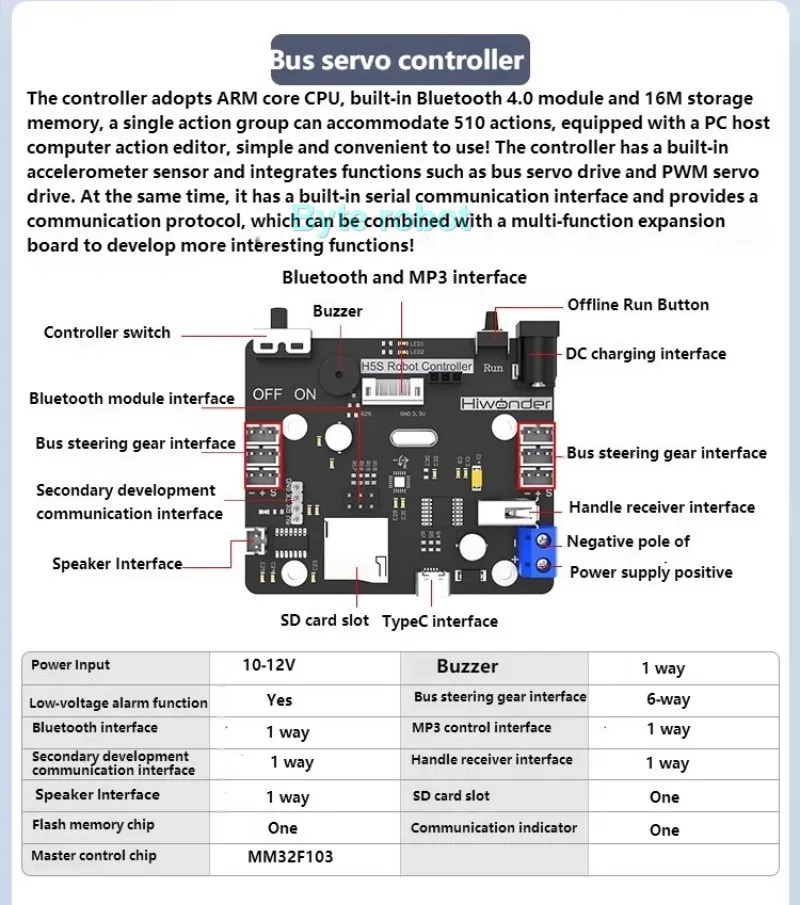

STM32 master controller

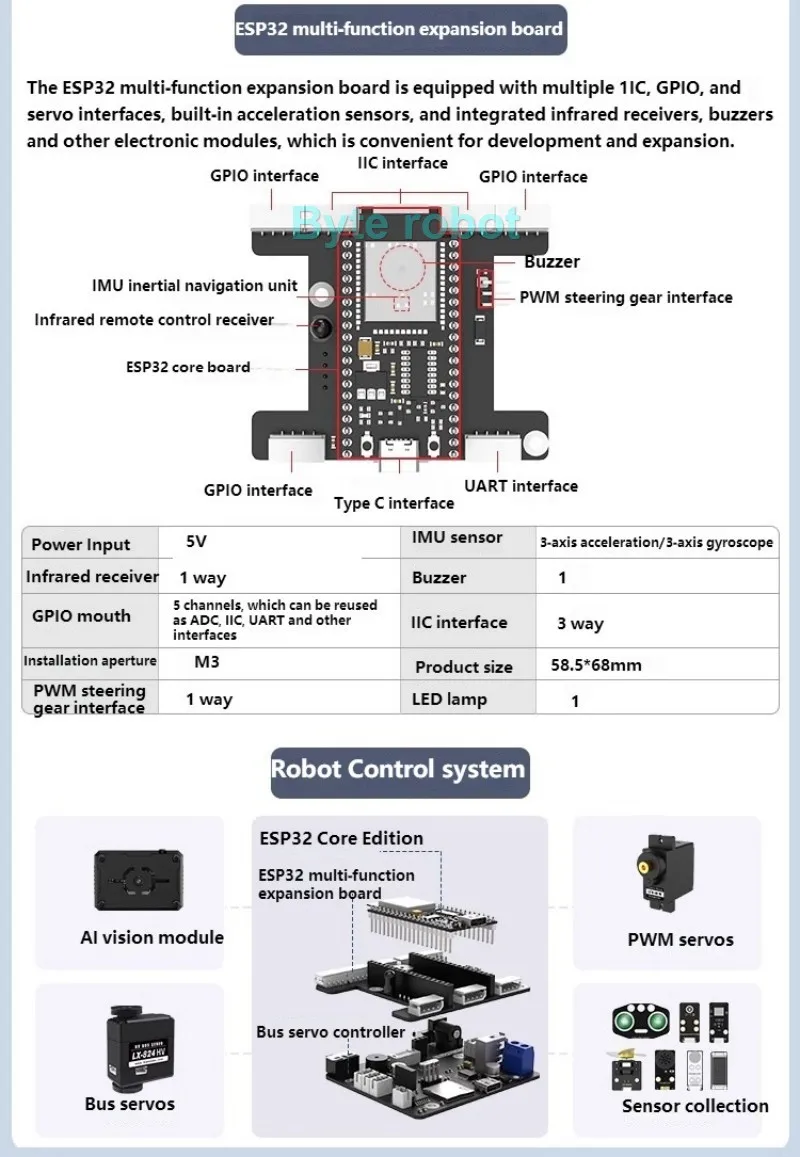

ESP32 multi-function expansion board

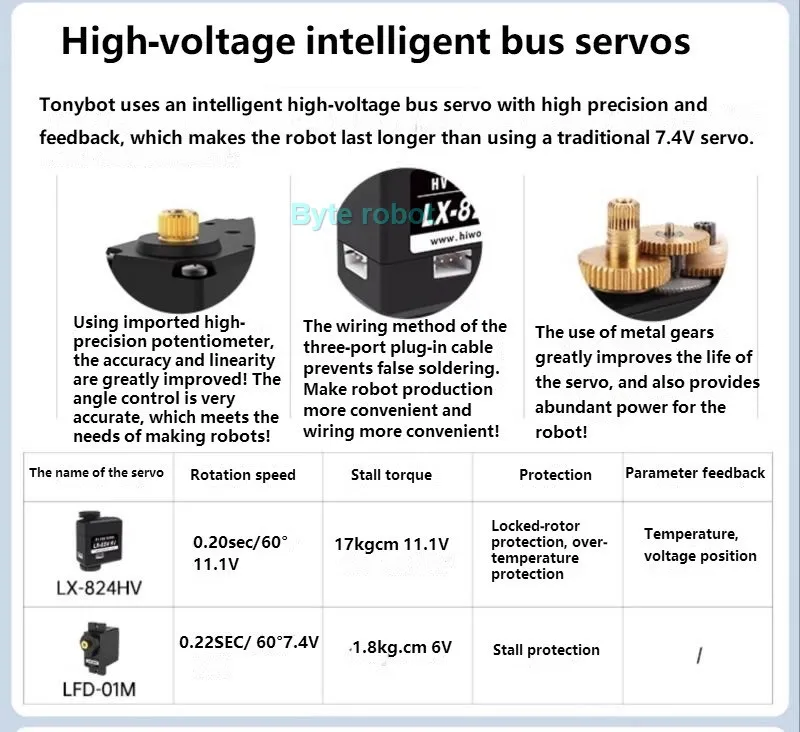

Servo Motors:
LX-824HV high-voltage bus servos
LED-01M anti-stall servos
Sensor:
2-400cm detection range
4. Power System
Parameter Specification

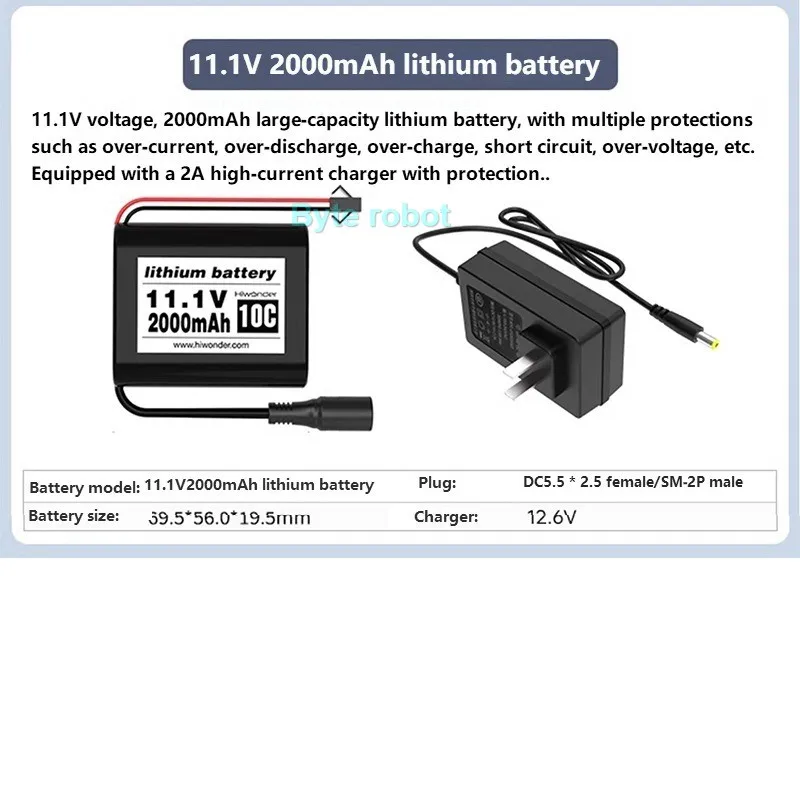

Battery 11.1V 2000mAh 10C LiPo
Runtime 80-120 minutes continuous
Charger Protected 2A fast charger
5. Control & Software
Control Methods:

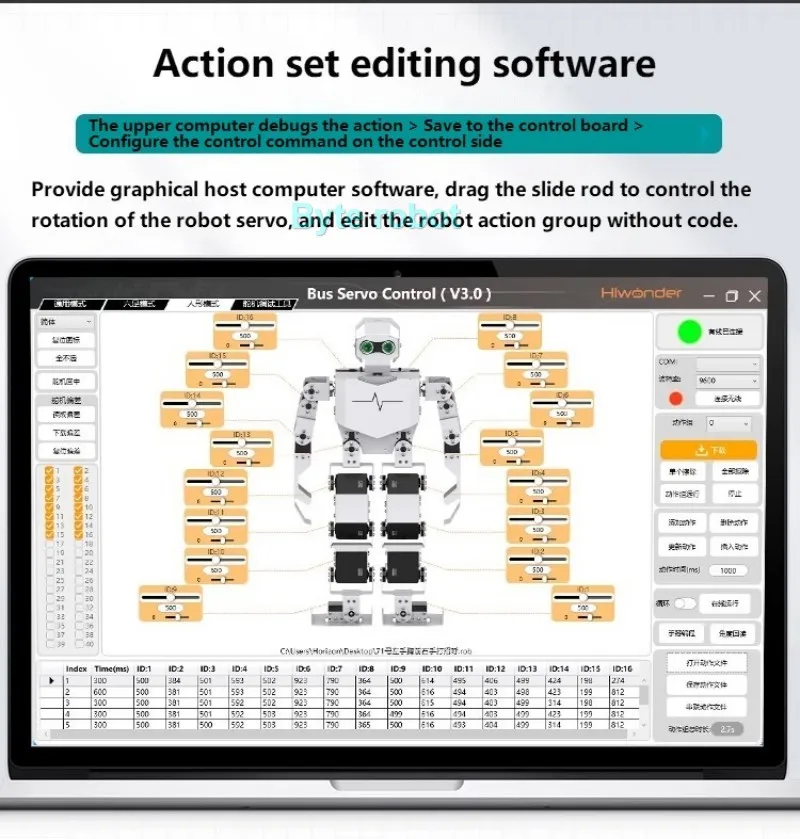

PC control via Bus Servo Control software
Mobile APP control
Note:
1.We can provide technical documents to our customers, please leave your email address or contact us.
2.Shipping with battery.
