Description
SPECIFICATIONS
1 TF card slot: Up to 128G(Don't included TF Card)
2.7-13.5mm Lens: 5X Optical Zoom Lens
AI Functions: Human Detection
Alarm Action: FTP Photo,Email Photo,Local Alarm
App name: Other
Audio Output: G.726/G.711
Auto Tracking: Humanoid Tracking
Brand Name: BOAVISION
Certification: CE
Choice: yes
Color: White
Color Night Vision: Yes
Connectivity: IP/Network Wireless
Dimensions (L x W x D)(mm): 175*115*110mm
Effective pixels: 5MP(2560x1920)
High Definition: 8.0 Megapixels
High-concerned chemical: None
Housing Material: ABS Plastic +Metal Waterproof IP66
IP Rating: IP66
IR Distance(m): IR 60m
Installation: Side
Internal Storage: 128G
Item Name: 8MP 5MP Mini PTZ WIFI Human Auto Tracking IP Camera
LEDs: 6pcs Array LEDs + 2pcs White Supplement Light
Lens (mm): 2.7-13.5mm
Lens Quantity: Single Lens
Megapixels: 5 MP
Minimum Illumination(Lux): 0.05Lux /0 Lux(IR on)
Model Number: HX-HD50M28AS/HX-4G50M28AS/HX-HD80M28AS/HX-4G80M28AS
Movement Range(Pan): 0°-360°
Movement Range(Tilt): Other
Night Vision: 60m IR Night Vision
Operating Temperature: -30°-60°
Optical Zoom: Other
Origin: Mainland China
Power Consumption(W): Day:<3W. Night:<12W
Power Supply: Normal
Power Supply(V): DC 12V
Rechargeable Battery: NONE
Rechargeable Battery Capability: Other
Scene: Indoor and outdoor
Sensor: CMOS
Sensor Brand: Sony
Shell Material: Plastic
Smart home platform: Other
Special Features: Waterproof / Weatherproof
Style: Dome Camera
Support: Two Way Audio Talk Back(With Speaker)
Support iPhone,Android APP: CamHi/CamHipro
Supported Mobile Systems: iOS,Android
Supported Operating Systems: Windows 10,Windows 7
TF Card: 128G TF Card
Video Compression Format: H.264,H.265
Viewing Angle : 75°
Whether or Not 50Vac or 75Vdc or Higher Power Supply: No
Zoom: 4X
Zoom type: Optical zoom
is_customized: Yes
semi_Choice: yes
Note :
If you need Power Extension Cable to extend the power supply.
Please Click "Buy Now" to get 2m /5m /10m Power Extension Cable.
Please do not add extension cords longer than 10M(33ft) between camera and power adapter,
it may suffer voltage reduction which would cause device malfunction in 3-6 months.
Do Not use extension cables from other brand.

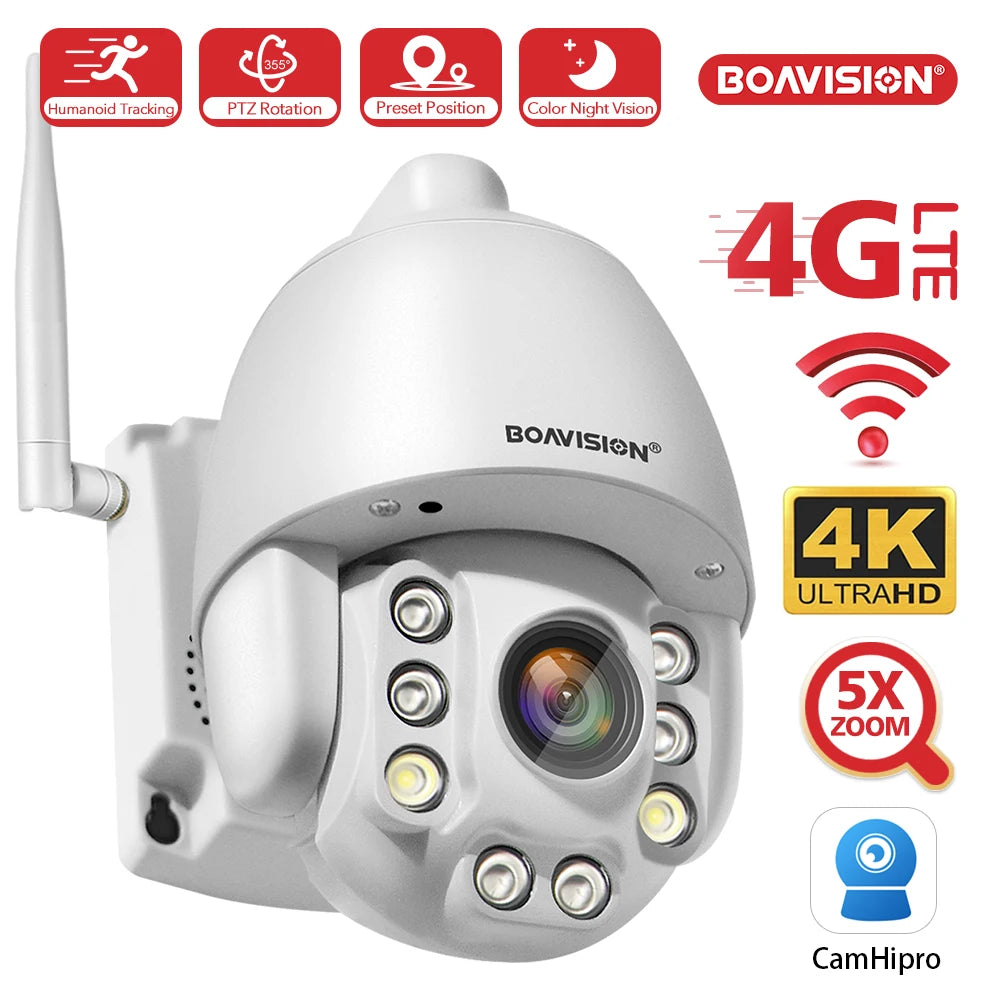

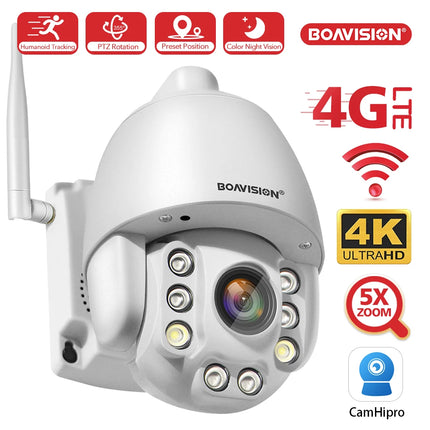

8MP 5MP WIFI/4G 2.5 Inch AI Auto Tracking Super Mini PTZ Speed Dome WIFI IP Camera
5X Zoom Lens: Support 8 Preset Points, Zoom Lens Status Can Be Saved During The Preset
Two Modes Optional

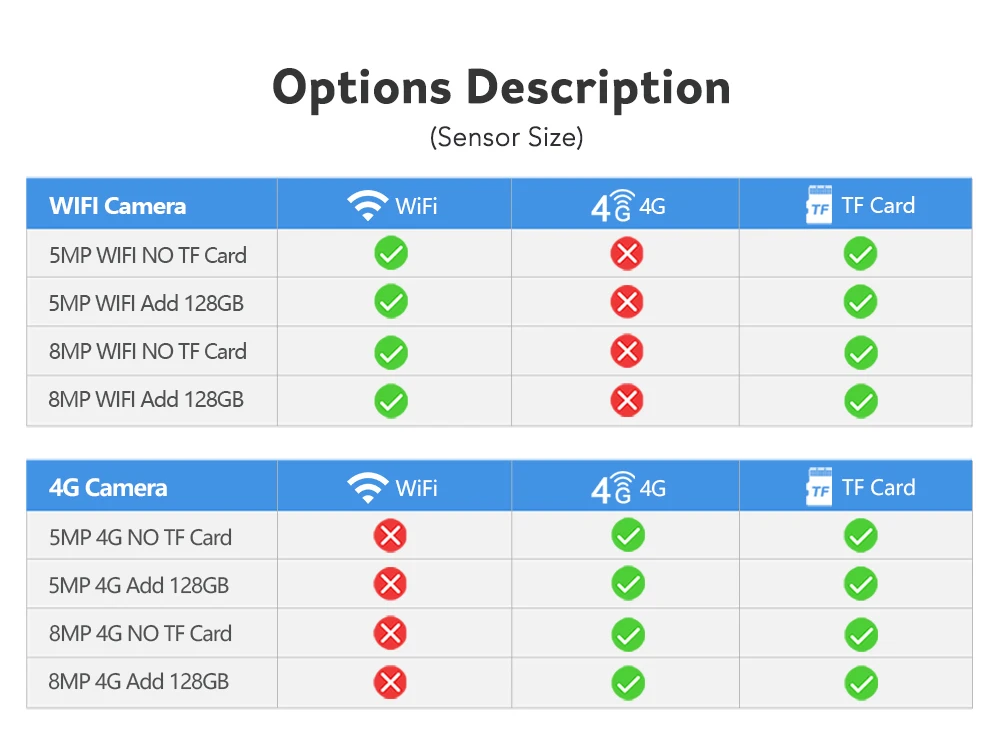

5MP / 8MP Optional , WIFI / 4G Optional
5MP / 4K 8MP Ultra HD Resolution
High quality 4K 8MP image , bringing you a smooth and shocking ultra-high definition experience.
AI Humanoid Auto Tracking
Human Detection algorithm reduces false motion detection alerts by filtering for human features.
Smart Tracking allows the camera to track objects in motion.
When enabled the camera will begin to automatically record and follow the object in motion.

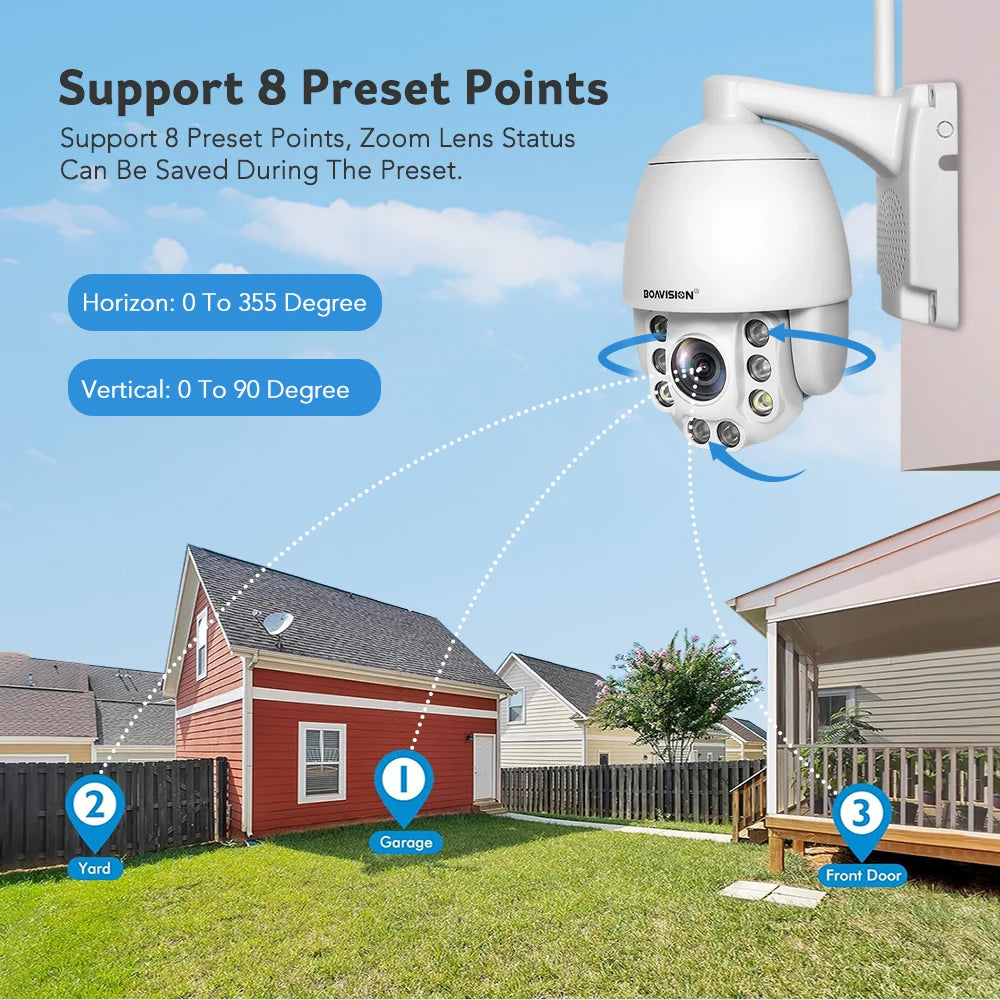

Support 8 Preset Points
Support 8 Preset Points, Zoom Lens Status Can Be Saved During The Preset
Two Way Audio Talk Back
Built-in Microphone, Loud Speaker, Support Two Way Audio Talk Back

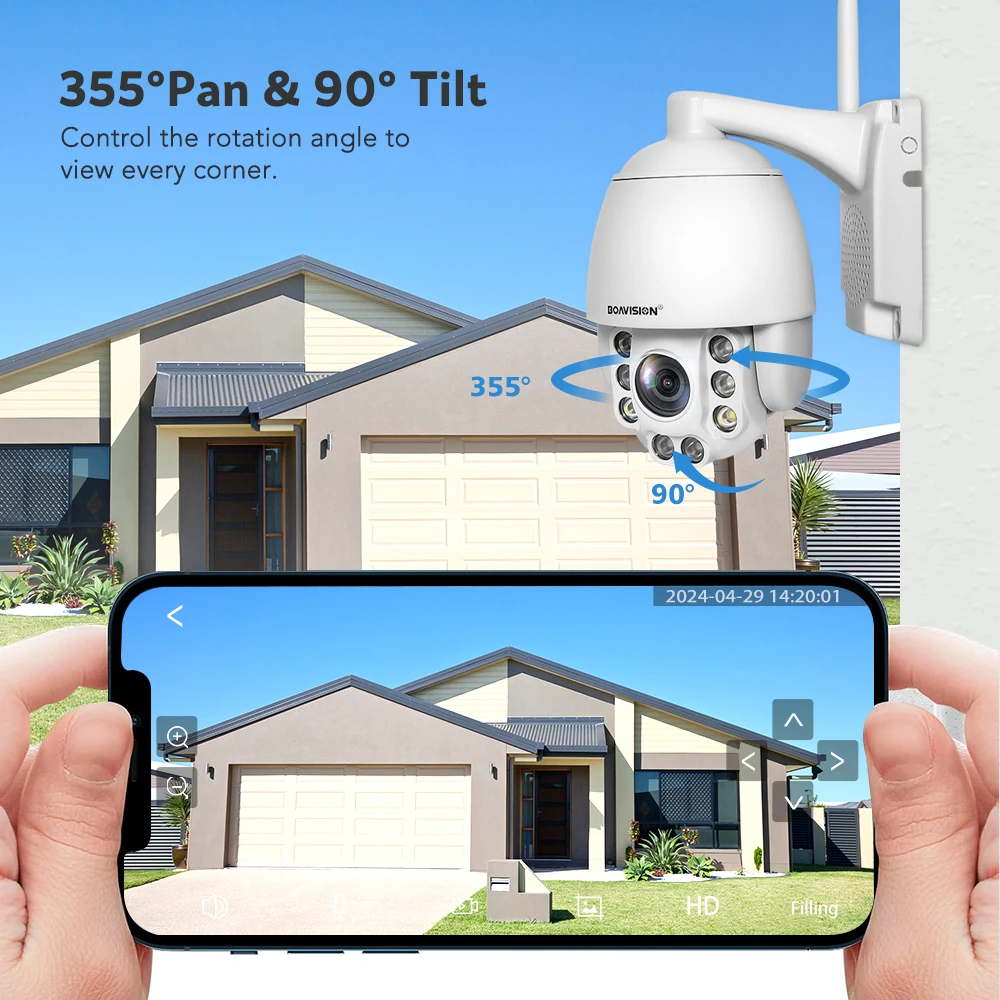

Pan Tilt Rotation
Horizontal: 355 Degree & Vertical: 90 Degree

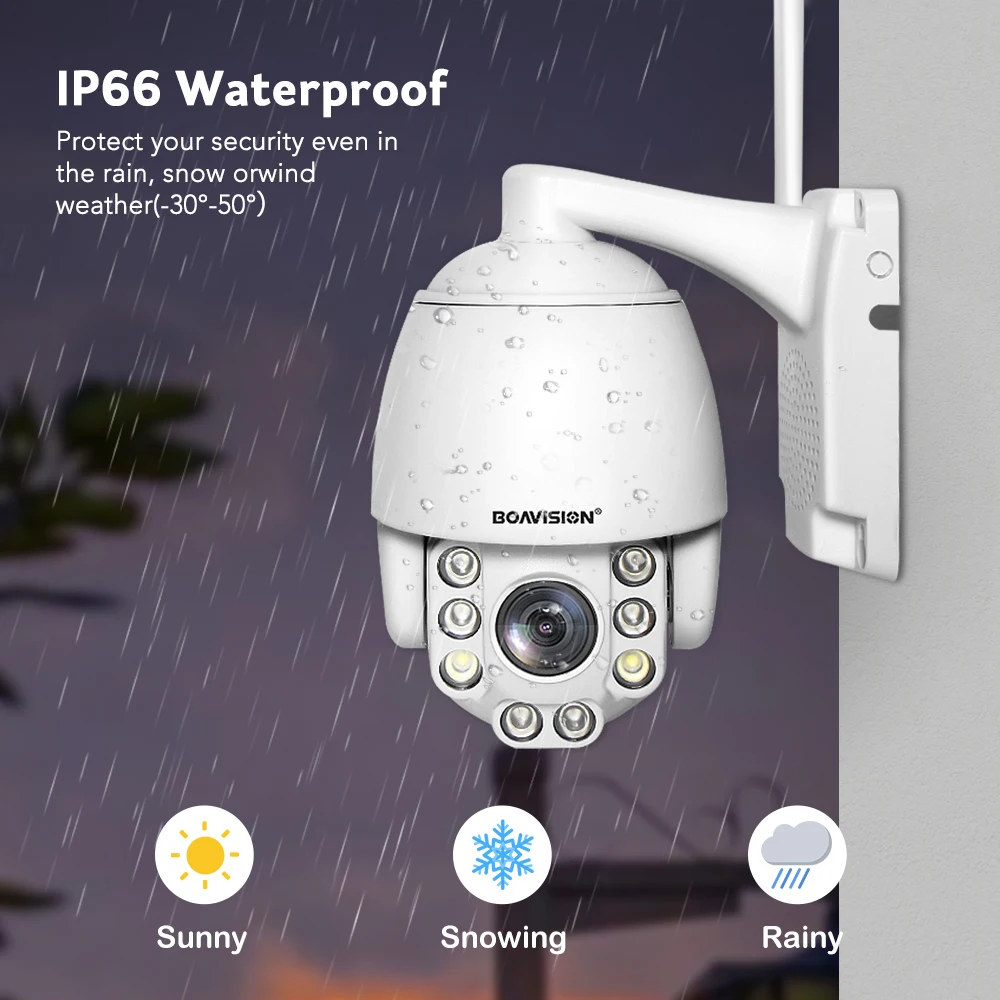

Waterproof IP66
ABS Plastic + Metal Housing Material, Outdoor Use
Motion Detection & Alarm Linkage
Alarm Send Pictures To The Specified Mailbox, Alarm Upload Pictures And Videos To The FTP Server,
Alarm Write Pictures And Videos To The TF Card, Alarm Message Push
60m Night Vision
6Pcs Array IR LEds Or 2Pcs White Supplement Light.

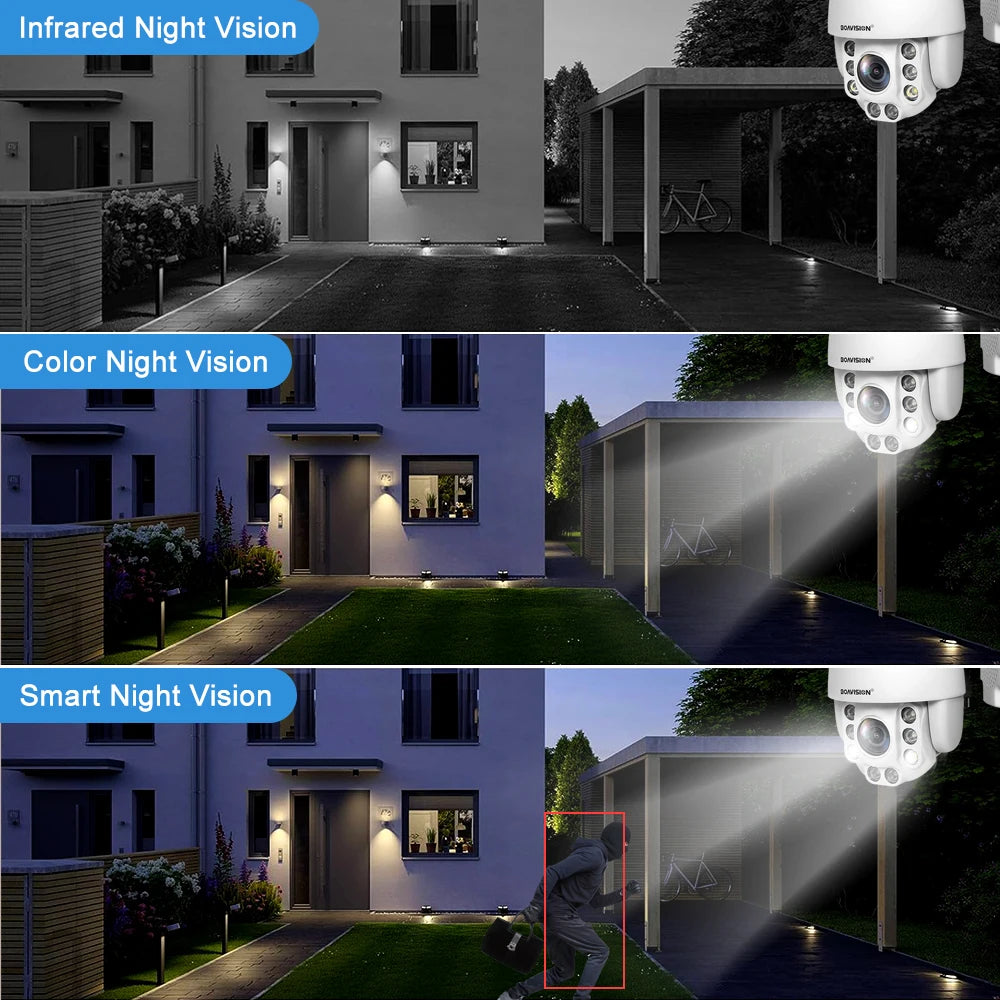

Three Night vision modes
6Pcs Array IR Leds Or 2Pcs White Supplement Light.
5X Optical Zoom Auto Focus Lens
2.7-13.5mm 5X Optical Zoom Auto Focus Lens

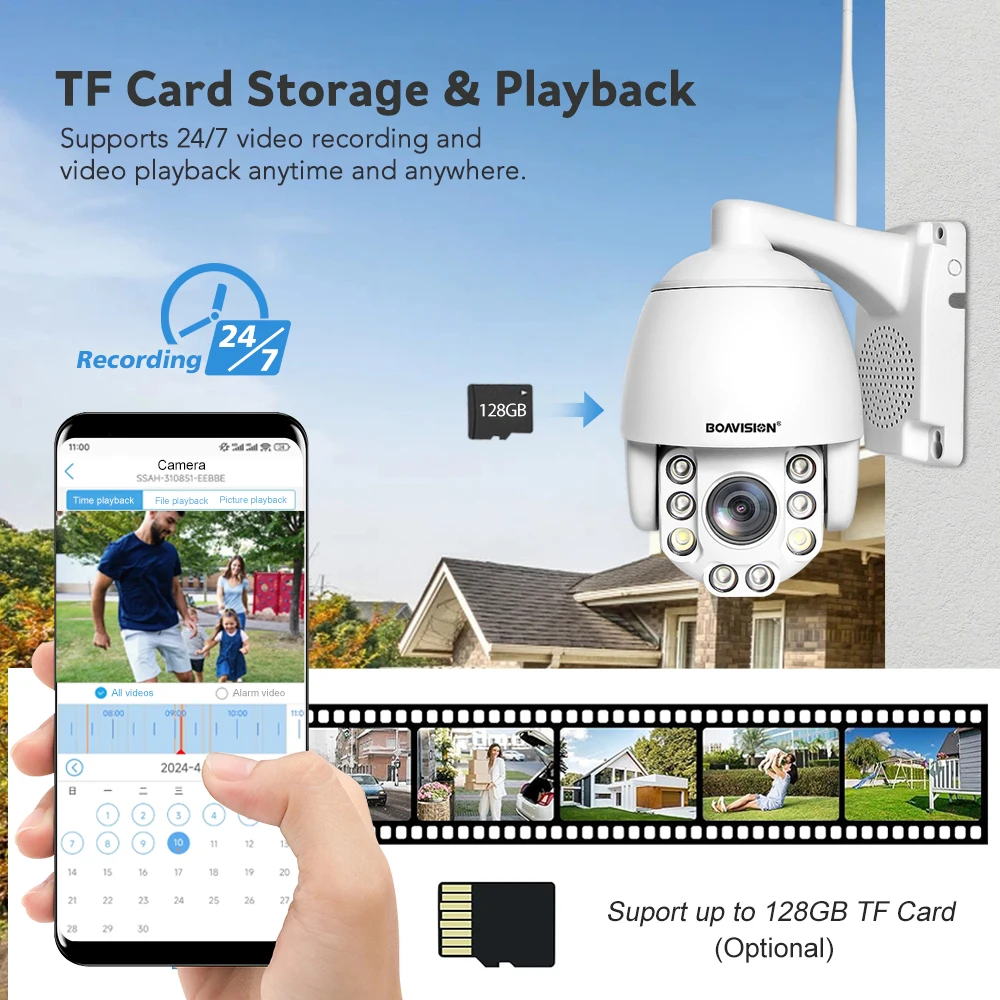

Support TF Card, Up to 128G
Up To 128GB ( TF Card is optional choose ) . Convenient to watch the video playback on Phone or PC anytime .
Support P2P Multi-Platforms Remote Monitoring
Support P2P, View & Anywhere & Anytime.
Provide Android & IOS APP (CamHipro) And Professional CMOS PC Client Software Windows/Mac

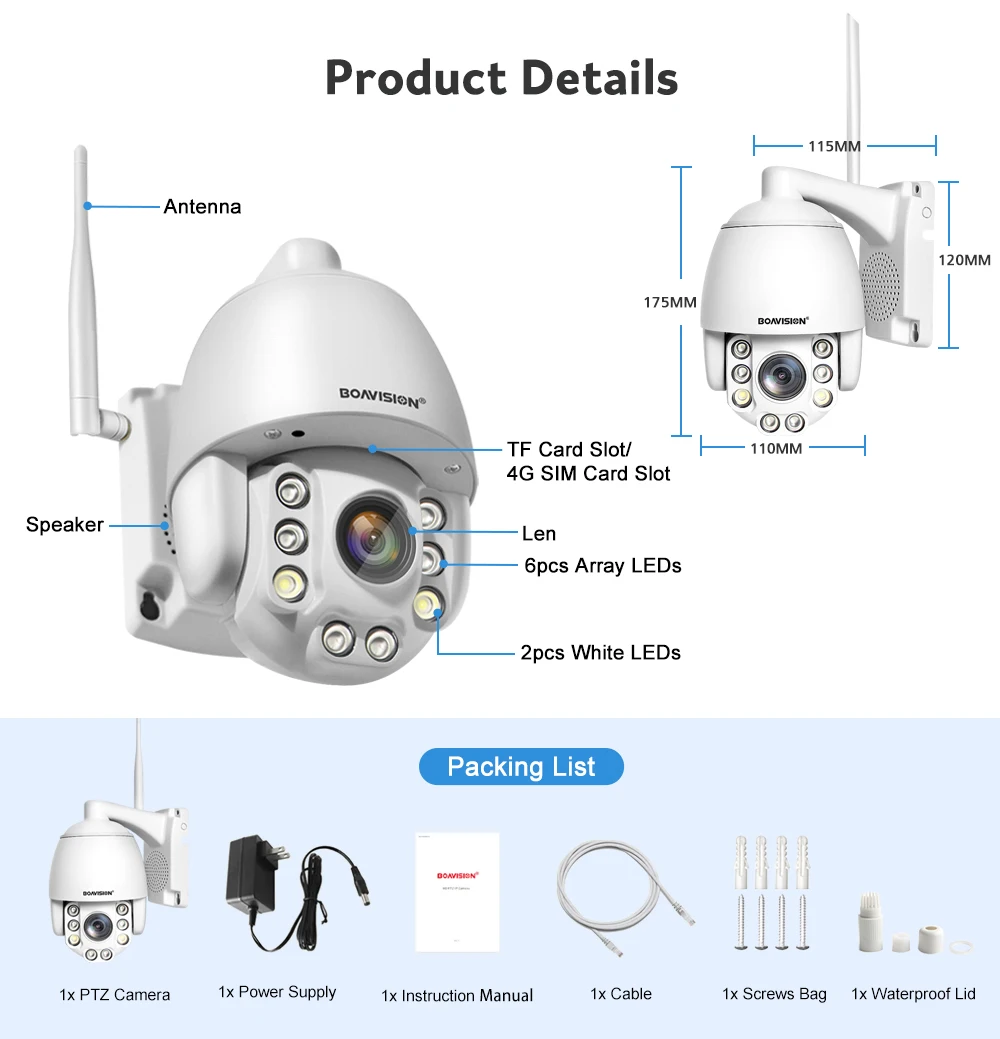

Product Details
Usage Scenarios
Can Be Used A Variety Of Environments

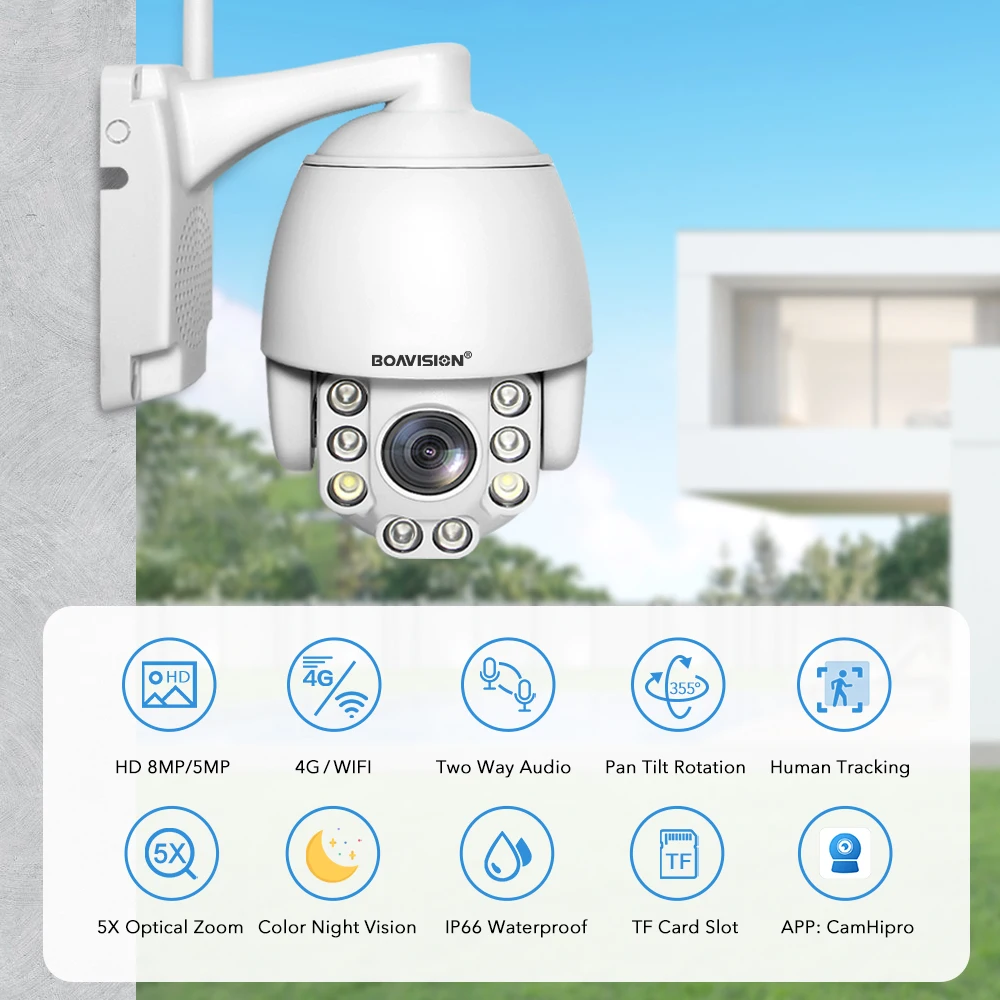

Features :
Support AI Human Feature Tracking
5X Zoom Auto Focus Lens(2.7-13.5mm5X Optical)
Support Wifi/4G (Depends on the models you choose,See Detail on Specification )
Support HD 5MP High quality resolution
6pcs Array Infrared LEDs+2pcs White light Floodlight. 60m IR Night Vision
Built-in Microphone&Speaker,Support Two Way Audio Talk Back
Microphone Effective Range 15 Meters
Loudspeaker Effective Range 60 Meters
Support TF card,up to 128G(TF Card Optional Choose)
Pan tilt rotation, horizontal:355° & vertical:90°Ø
Support P2P, view & anywhere & anytime
Elegant outline and easy installation
Provide android & ios APP (CamHi/CamHipro) and professional CMS PC client software
Support 8 preset points , zoom lens status can be saved during the preset
Support Auto Tracking AI Human Detection
Outdoor Use,Waterproof IP65
2 Models For Optional Choose :
HX-HD50M28AS:WIFI 5MP2.7-13.5mm 5X Zoom Lens
HX-4G50M28AS:4G 5MP 2.7-13.5mm 5X Zoom Lens
Specifications:
|
Product
|
|
HX-HD50M28AS
|
HX-4G50M28AS
|
|
Operating system
|
Embedded Linux OS
|
|
Effective pixels
|
|
5MP(2560x1920)
|
5MP(2560x1920)
|
|
CMOS Sensor
|
1/2.8"
|
|
Lens interface type
|
M12
|
|
Lens
|
2.7-13.5mm 5X zoom lens
|
|
View angle
|
68.5°-4.2°
|
|
Min.illumination
|
0.05 Lux / 0 Lux(IR on)
|
|
Day&Night mode
|
Auto IR-CUT
|
|
Night vision distance
|
6pcs Array Infrared LEDs+2pcs Floodlight LEDs. 60m IR Night Vision/30M Color Nightvision
|
|
Video compression Standard
|
H.264 Main Profile/H.264 Baseline
|
|
Video streaming
|
Dual streaming
|
|
Video resolution
|
First stream:2560x1920 or 2560x1440
|
|
Second stream:800x600 or 800x480
|
|
JPEG stream :(Monitoring for mobile phones), Q720P(640x352), QQ720P(320x176)
|
|
Video code rate
|
32 to 8192Kbps. supports constant bitrate/variable bitrate
|
|
Video frame rate
|
15fps(PAL 50HZ/NTSC 60HZ)
|
|
Audio
|
Audio compression standard: G.726/G.711
|
|
Audio code rate: Rate adaptive
|
|
Audio Input: Support, built-in Microphone
|
|
Audio Output: Support Two Way Audio Talk Back(With Speaker)
|
|
Image settings
|
Brightness,saturation,contrast,Sharpness,Exposure,flip,mirror
|
|
Image enhancement
|
Backlight compensation,Automatic white balance,Digital WDR, 3D digital noise reduction
|
|
Audio function
|
Built in Audio Microphone, Support Two Way Audio Talk Back(With Speaker)
|
|
Motion detecting
|
Can set 4 independent detection region (1-100 sensitivity can be set)
|
|
Alarm linkage
|
Alarm send pictures to the specified mailbox,
|
|
alarm upload pictures and videos to the FTP server,
|
|
alarm write pictures and videos to Micro TF card, alarm message push
|
|
Privacy mask
|
Maximum support 4 users to simultaneously browse
|
|
OSD
|
Support camera name, date and time information superimposed
|
|
User management
|
Supports user and rights management
|
|
Simultaneous viewers
|
maximum support 12 users to simultaneously browse (each stream supports 4 users)
|
|
Network protocol
|
TCP/IP,HTTP,TCP,ICMP,UDP,ARP,IGMP,SMTP,
|
|
FTP,DHCP,DNS,DDNS,NTP,UPNP,RTSP etc.
|
|
Connection protocol
|
o-n-v-i-f-compatible 2.1(backward compatible)
|
|
Network Support
|
2.4 GHz to 2.4835 GHz/IEEE802.11b.
802.11g. 802.11n Draft
|
GSM 900/1800 MHz
UTRA FDD Band I/VIII
E-UTRA FDD Band 1/3/7/8/20/28
E-UTRA TDD Band 38/40/41
|
|
Wireless Security
|
64/128-bit WEP. WPA/WPA2. WPA-PSK/WPA2-PSK. WPS
|
|
Transmission rate
|
11b: 11Mbps,11g :54Mbps,11n :135Mbps
|
|
Rotation angle
|
Horizon:0° to 355°. Vertical: 0° to 90°
|
|
Horizontal speed
|
1° to 40°/S
|
|
Vertical speed
|
1° to 20°/S
|
|
Preset
|
Support 8 preset points , zoom lens status can be saved during the preset
|
|
Auto Tracking
|
AI Humanoid Dection Auto Tracking
|
|
Power interface
|
1 5.5mm power interface
|
|
Ethernet
|
1 RJ45 & Antenna 10M/100M Adaptive Ethernet Interface
|
|
TF card Slot
|
1 TF card slot. up to128GB(TF Card Optional Choose)
|
|
Reset button
|
Support(On the side of the TF Card Slot)
|
|
Power supply
|
DC 12V 2A
|
|
power
|
Day: 3W; Night: 12W
|
|
Operating temperature
|
-20 to +60 degree
|
|
Operating humidity
|
10% to 95%
|
|
Material
|
Outdoor Use,Waterproof IP65
|
|
Installation
|
Rack mounting
|
|
Size(mm)
|
175*115*110mm
|
|
Weight(kg)
|
0.9kg
|
|
Package Size(mm)
|
250*250*100mm
|
|
Package Weight(kg)
|
1.1kg
|
Packing List:
1*2.5 Inch AI Auto Tracking Dome Speed IP Camera Built-in Microphone&Speaker(TF Card Optional Choose)
1*DC 12V 2A Power Supply
1*CD & Quck Start Manual
1*Screws Bag
1*Antenna
